How To Add A New Bluetooth Device To My Computer – Windows 7

How To Add A New Bluetooth Device To My Computer – Windows 7

Set up Bluetooth (PrimeTest 300 Example)

Make sure you’re using an approved Belkin adapter or an inbuilt laptop Bluetooth adapter.
If using a Bluetooth adapter plug in the Bluetooth adapter into the USB port
Let the device install software (automatic via Windows 7)
Bluetooth icon will appear in system tray
Right click on icon, click open settings
Under discovery, click Allow Bluetooth devices to find this computer

On the PrimeTest 300, click configuration -> Bluetooth favourite.
Scroll down to computer, click setup
Click Search, wait for the PrimeTest 300 to find your Belkin adapter
Your PC name will now appear in the “New” field
Under PIN Number: Enter 0000, this seems to help the pairing process
Hit Enter
Hit Add New
Under “Computer” you will now see your machine name (i.e. Hordern-07)
Hit OK
Hit OK again, to take you back to the main screen

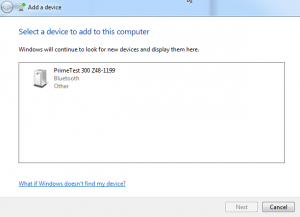

Right click on the Bluetooth icon on your PC and click Add a device, wait for a bit and the PrimeTest will show up:










Click next
Click Enter the device’s paring code
Enter 0000 hit next
The device is now added to your Bluetooth Devices list
Right click on the Bluetooth icon click Open Settings
Click COM Ports:


If there are no incoming ports listed click add. If there is an incoming port here, record the COM port number
Click add
Click incoming
Click OK
Wait for the device driver software to install and record the COM port number
On the PrimeTest 300, click Data Transfer -> Download to PC -> OK
The device will say waiting to connect
You are now ready to open the COM port on your PC and start the transfer in PATGuard Cloud
